DOWNLOAD
https://files.plixer.com/support/migrate.tar.gz
SYNOPSIS
OPTIONS...
migrate.exe [-d|-f|-m|-p|-r|-t]
Migrates a Scrutinizer install between different hosts, OS, and DB platforms. Supported Database platforms are !MySQL and !PostgreSQL. **Please be sure you have READ and completely UNDERSTAND the documentation before using the util on any kind of production database.**
Requires one of the run mode flags:
Run Modes:
Code: Select all
-d, -data Migrate Scrutinizer historical data. You MUST be collecting
flows on the destination before doing this.
-f, -finish Attempt to remove DB ROLEs listed in the migrate.ini and
outputs necessary SQL commands to do so if not.
-m, -meta Migrate Scrutinizer meta data. The plixer_flow_collector
service MUST be stopped on the destination.
-p, -push Migrate a single, specific table.
ex: ./migrate.exe -p plixer.ip_groups
-r, -retreat 'Un-migrates' historical data at the destination server.
-t, -test Tests connections and gathers some initial migration stats.
Options:
Code: Select all
-c, -cross_ver, Used for cross-version meta data migrations. Stomps SCHEMA
-clobber_version on the destination and re-CREATEs it using the source as
reference. You MUST re-run the destination's Scrutinizer
installer after the meta data migration.
-checksum Performs a checksum per table for migrated historical data
and logs the results.
-dump Performs a mysqldump or pg_dump of the Scrutinizer meta
data pre-migration to scrutinizer/files.
Providing you have either mysqldump or pg_dump installed and
in your environment PATH.
-flip_ips Will "flip" the source and destination ips in the
migrate.ini. Handy if you're re-IPing the destination
-h, -help Display this help message.
-i, -inifile Designate a path to a configuration file.
scrutinizer/files/migrate.ini by default.
-l, -logfile Designate the path to write a migration log to.
scrutinizer/files/logs/migrate.log by default.
-man, -info Display the full documentation.
-q, -quiet Suppress terminal progress messages.
-skip_clock Skips source/destination clock test (as risky as it sounds)
-skip_lock Skips table locking during migration (as risky as it sounds)
DESCRIPTION
The Plixer Scrutinizer DB Migration Utility is designed to ease the process of moving a Scrutinizer install between hosts and/or Database platforms. As with any kind of critical database work, a complete back-up should be made before attempting any kind of migration.
PRE-MIGRATION
The Migration Utility requires database ROLEs with SUPERUSER privileges that can connect remotely. Since this is an obvious security risk, temporary ROLEs should be created for the duration of the migration.
These Examples assume 'tmp_user' and 'tmp_pass' as the ROLE.
MySQL
Code: Select all
SELECT PASSWORD('tmp_pass');
+-------------------------------------------+
| PASSWORD('tmp_pass') |
+-------------------------------------------+
| *00C233A85F04B58B5C9728B5BB411DC46F85BA54 |
+-------------------------------------------+
GRANT ALL ON *.* TO 'tmp_user'@'%' IDENTIFIED BY PASSWORD '*00C233A85F04B58B5C9728B5BB411DC46F85BA54';
FLUSH PRIVILEGES;
PostgreSQL
Code: Select all
CREATE USER tmp_user WITH SUPERUSER ENCRYPTED PASSWORD 'tmp_pass';
Code: Select all
host all tmp_user 0.0.0.0/0 md5
Warning
Be sure to remove these ROLEs once the migration is complete. the -finish run mode will help you with this.

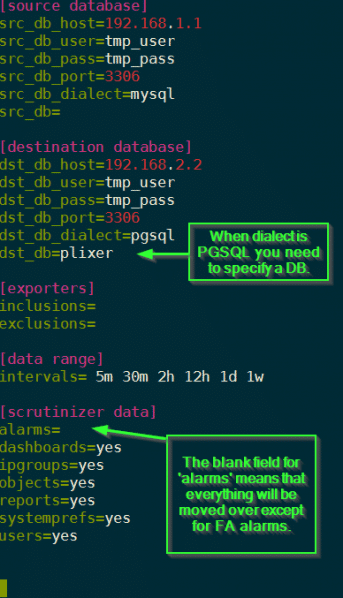

CONFIGURATION
Most configuration parameters are set in the migration ini file, 'migrate.ini' by default. The Utility will look for this file in the present working directory if -inifile is not set.

[source|destination database]
DB connection parameters for the migration hosts.
==== *_db_host
IP address of the migration host. Use the loopback address if you're running this util locally on one of the hosts.
==== *_db_user
You will need to ensure that the db user named here has full GRANTs to the plixer SCHEMA as well as information_schema. 'root' is likely your best bet.
==== *_db_pass
Password for the Database User.
==== *_db_port
Database connection port. Default is 3306 for !MySQL , 5432 for !PostgreSQL.
==== *_db_dialect
This is the Database connection driver. 'mysql' for a !MySQL database. 'pgsql' for a !PostgreSQL database.
==== *_db
The database to use upon connection. Leave this blank for !MySQL. Default for !PostgreSQL is 'plixer'.
[exporters]
=== inclusions ===
A space separated list of exporters to include when performing a historical data migration with the -d or --data flag. ex: inclusions= 10.1.1.3 10.1.1.4 The migrate utility will attempt to migrate all exporters if left blank
=== exclusions ===
A space separated list of exporters to exclude when performing a historical data migration with the -d or --data flag. ex: exclusions= 6.6.6.6 7.7.7.7 The migrate utility will attempt to migrate all exporters if left blank
[data range]
=== intervals ===
A space separated list of flow history intervals to migrate. Valid entries are: 1m 5m 30m 2h 12h 1d 1w By default, 1 minute data is not migrated.
=== start/end_epoch ===
Limits the time frame of data migrations to a unix timestamp.
[scrutinizer data]
These are specific "categories" of Scrutinizer meta data you wish to migrate from the source install to the destination install. This is done when calling the utility with the -m or --meta flag.
Any value for these parameters in the migrate.ini is considered true. To not migrate a particular category, leave the value blank.
=== alarms ===
Migrates Alarm Bulletin Boards, Alarm Policies, Notification Policies, and Flow Analytics Configuration.
=== dashboards ===
Migrates all Dashboards and Dashboard Gadgets.
=== ipgroups ===
Migrates custom Applications and !IpGroups.
=== objects ===
Migrates Scrutinizer Maps and Device Tree Groups. If you're using any custom map background images, they will need to be uploaded manually.
=== reports ===
Migrates Saved Reports and any reports created in Report Designer.
=== systemprefs ===
Migrates Scrutinizer server preferences, scheduled tasks, Cross Check configuration, and any Third Party configuration.
=== users ===
Migrates Scrutinizer users, user groups, and user preferences.
EXAMPLES
== Scrutinizer Cross Version Migration ==
These steps work for either !MySQL or !PostgreSQL. The source server MUST be version 15.8 or greater.
- Deploy and license the latest Scrutinizer VA for the destination.
- Following the PRE-MIGRATION section, create temporary database ROLEs.
- Get the migration utility binary and migrate.ini file onto the destination.
- Following the CONFIGURATION section, fill out the migrate.ini.
- Stop the plixer_flow_collector service on the destination.
- Test the connections. Only proceed if you get all green [OK] results.
Code: Select all
migrate.exe -t
- Migrate the Scrutinizer meta data using the clobber_version flag.
Code: Select all
migrate.exe -c -m
- Run the latest Scrutinizer installer on the destination.
- Verify the meta data migration was successful via the web interface.
- Verify collection has started again. You MUST be collecting on the destination before continuing.
- Migrate the Scrutinizer historical data within tmux.
Code: Select all
tmux migrate.exe -d --skip_version
- Once the migration is complete, be sure to remove the temporary ROLEs.
Code: Select all
migrate.exe --finish
